Name: Waterproof Washable UHF Textile Laundry RFID Tag 5815 for Laundry Management
Brand: Gialer
SKU: 41882484834458
Price: 14.99 USD
Availability: InStock
Rating: 4.85 (20 reviews)

Description
Additional Information
Warranty & Shipping

Description

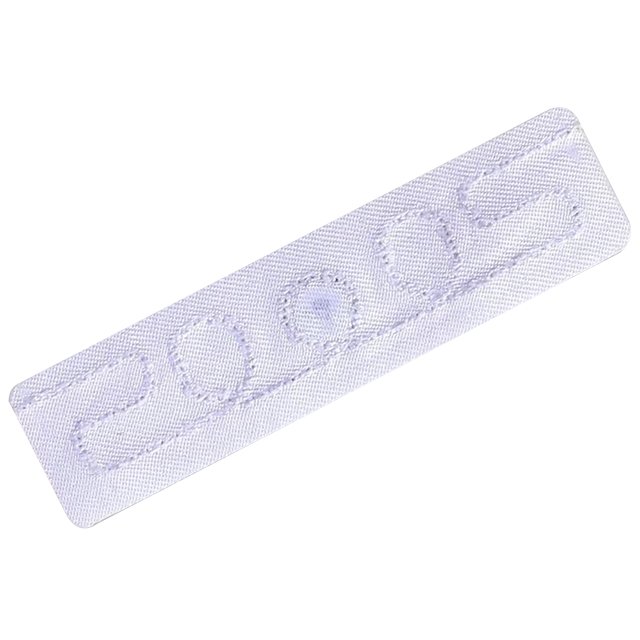

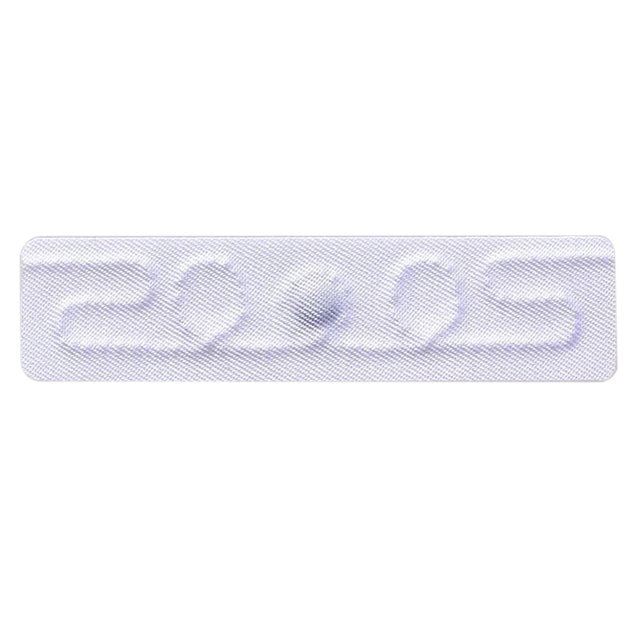

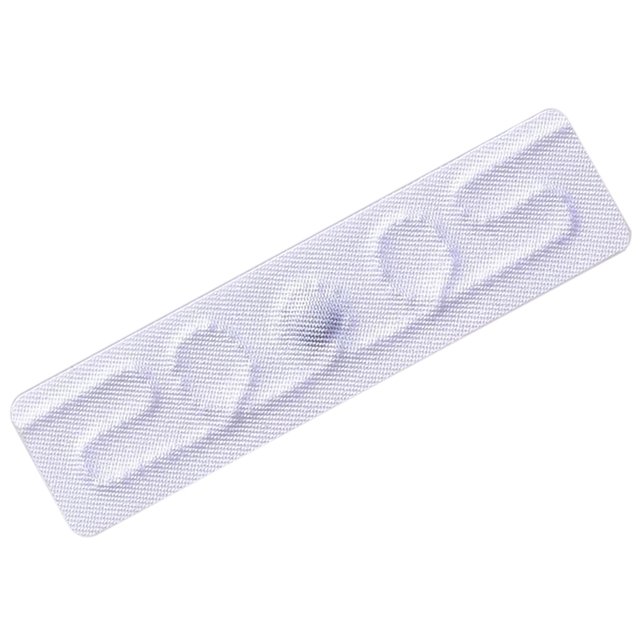

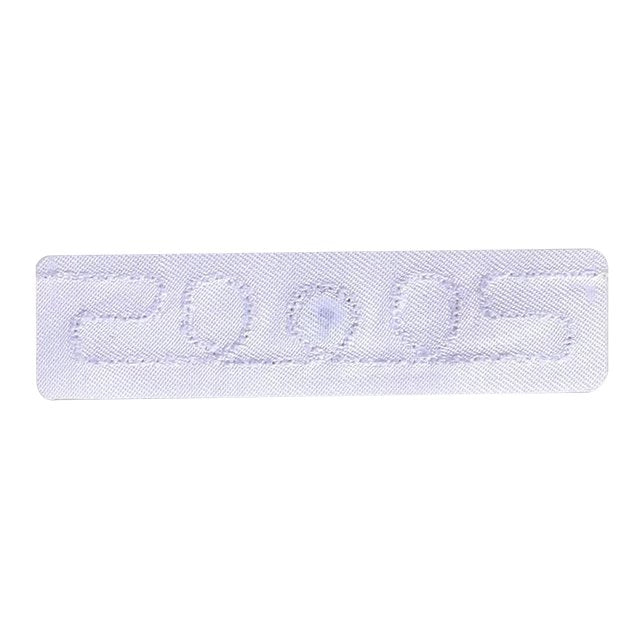

Waterproof Washable UHF Textile Laundry RFID Tag 5815 for Laundry Management

Type Number:10-Laundry5815
Textile or Off Metal applications.
Frequency options:FCC / ETSI / CHN.
Size:LxWxH: 58 ( 2.283 inch) x 15 (0.590 inch) x 1.5(0.059 inch) mm
More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.
It can be fixed by sewing.

Download: 5815 RFID Laundry Tag Datasheet.pdf

ADVANTAGES:

More than 200 wash cycles.
Both material and design have been tested for reliability.
100% function tested.

MAIN FEATURES:

Can customize size for customers.
High temperature resistant material.
Can be lasered with barcode.
Resistant to waterproof.

APPLICATIONS:

Industrial washing.
Management of uniforms.
Medical apparel management.
Military clothing management.
Personnel patrol management.

CHARACTERISTICS：

Compliance	EPC Class1 Gen2, ISO18000-6C
Frequency	845~ 950MHz
Chip	Impinj R6P
Memory	EPC 96bits,User 32bits
Read/write	Yes
Data Storage	20 years
Lifetime	200 wash cycles or 2 years from shipping date (whichever comes first)
Material	Textile
Dimension	LxWxH: 58 ( 2.283 inch) x 15 (0.590 inch) x 1.5(0.059 inch) mm
Storage Temperature	-40℃~ +85 ℃
Operating Temperature	1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356οF), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes
Mechanical Resistance	Up to 60 bars
Delivery format	Single
Installation Method	Thread installation
Weight	~ 0.6g
Package	Antistatic bag and carton
Color	White
Power Supply	Passive
Chemicals	Normal common chemicals in the washing processes
RoHS	Compatible
Read distance	Up to 5.5 meters (ERP=2W) Up to 2 meters ( With ATID AT880 handheld reader)
Polarization	Liner

* During sewing installation, the stitching should not damage the metal wire and chip module.

* Different reading performance with different reading facilities.

* Hot installation, when the temperature is lower than 210℃ or the pressure is less than 0.6 Mpa, there will be a hidden trouble of bad hot stamping effect.
