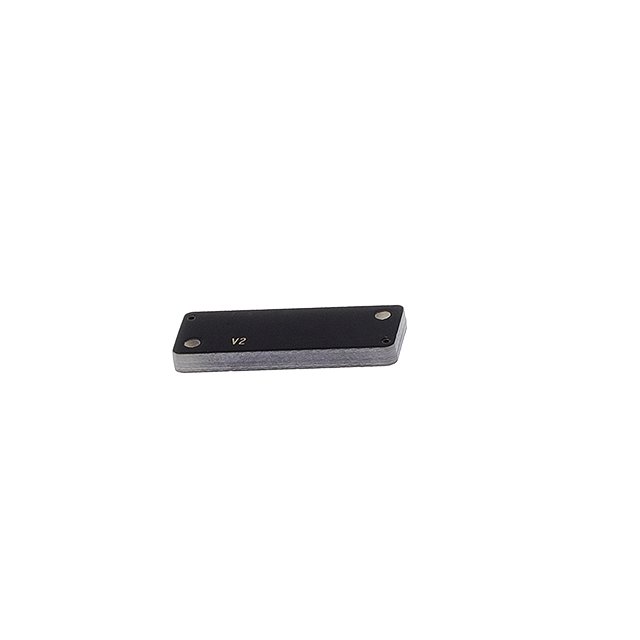

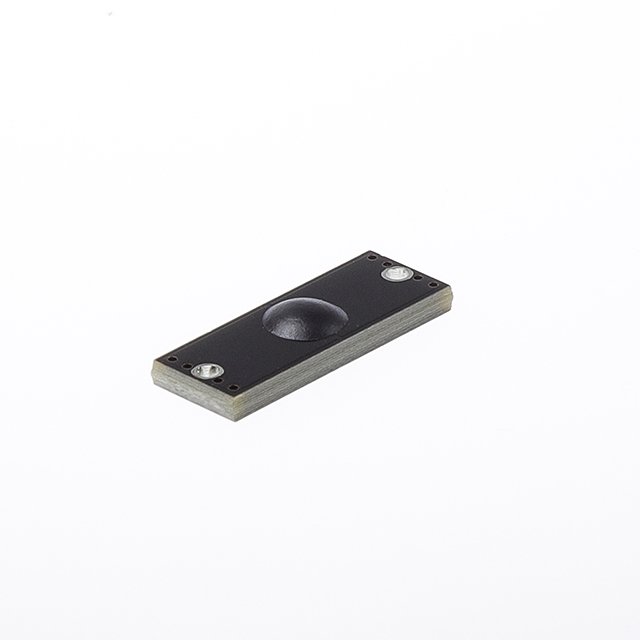

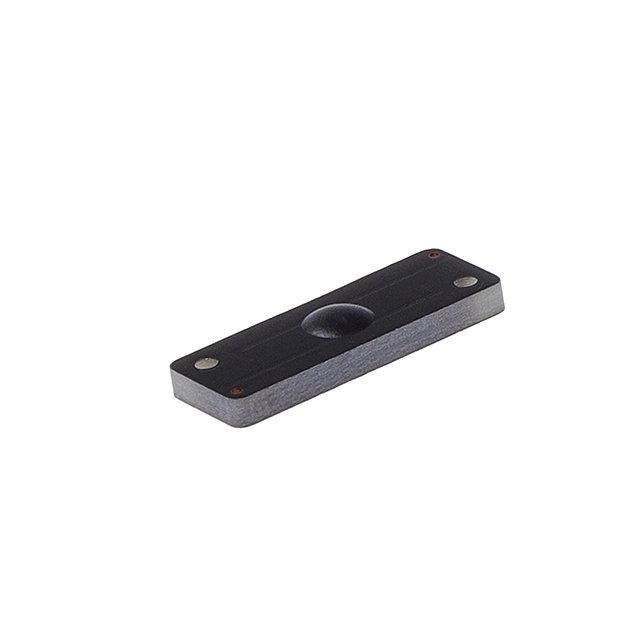

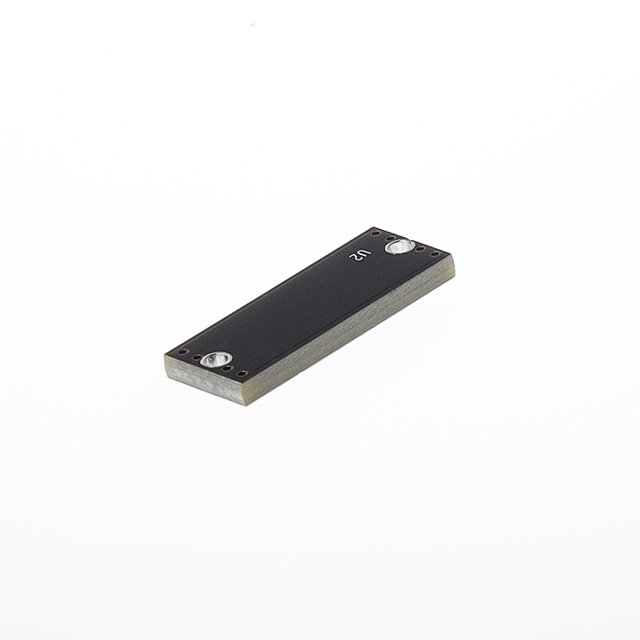

Gialer RFID PCB Tag RFID Anti-Metal Tag Label -- 2208
- Type Number:10-PCB2208
- On Metal applications.
- Frequency options:FCC / ETSI / CHN.
- Size: 22mm*8mm*3mm(M4QT Chip) 22mm*8mm*2mm(Ucode7M Chip)
- A popular and smaller size UHF Tag used on metal surfaces, It does a stable and reliable UHF on metal tag, which is widely used in indoor asset management.
- Be of good RF performance, work stably on metal surface.
- 100% memory writing tested.
- Both material and design have been tested for reliability.
- 100% function tested by Voyantec Tagformace.
- Can customize size for customers.
- It can be fixed by tape.
- Painted ones can be used in outdoor.
Download: 2208 RFID PCB Tag Datasheet.pdf
A popular and smaller size UHF Tag used on metal surfaces.
It does a stable and reliable UHF on metal tag, which is widely used in indoor asset management.
ADVANTAGES:
- Be of good RF performance, work stably on metal surface.
- 100% memory writing tested.
- Both material and design have been tested for reliability.
- 100% function tested by Voyantec Tagformace.
MAIN FEATURES:
- Can customize size for customers.
- Flexible and convenient installation.
- Painted ones can be used in outdoor
APPLICATIONS:
- Tool management.
- IT equipment management.
- Metal containers management.
- Metal equipment management.
- Personnel patrol management.
- Fixed asset management.
CHARACTERISTICS：
|
Compliance |
EPC Class1 Gen2; ISO18000-6C |
|
Frequency |
902-928MHz , 865~868MHz (Can customize frequency) |
|
Chip |
Impinj M4QT ( Can customize tag with different UHF chips) |
|
Memory |
EPC 128bits User 496bits |
|
Read/write |
Yes (EPC and User) |
|
Data Storage |
50 years |
|
Warranty |
One year |
|
Material |
FR4 |
|
Dimension |
22mm*8mm*3mm(M4QT Chip) 22mm*8mm*2mm(Ucode7M Chip) |
|
Storage Temperature |
-30℃~ +110 ℃ |
|
Operating Temperature |
-25℃~ +85℃ |
|
Storage humidity |
5%～95% |
|
Delivery format |
Single |
|
Installation Method |
3M300LSE tape (standard) |
|
Weight |
~ 1g |
|
Package |
Bubble bag and carton |
|
Color |
Black |
|
Power Supply |
Passive |
|
Drop Test |
1 meters high, 200 drop test passed |
|
Alcohol test |
95% alcohol test passed |
|
Gasoline test |
Passed |
|
High & low temperature shock test |
-40 ℃ ~ +150℃, 7 cycles, total 48 hours |
|
Temperature cycle test |
-40℃～+120℃, 7 times cycle time testing, 48 hours total |
|
RoHS |
Compatible |
|
Read distance on metal surface |
Up to 1.2 meter (EIRP=4W) Up to 0.5 meters ( With ATID AT880 handheld reader) |
|
RF performance consistency test |
100% tested by Voyantic Tagformace |
|
Options |
pre-encoding, Surface painting |
